9100H / 9120H

ABOUT PRODUCT

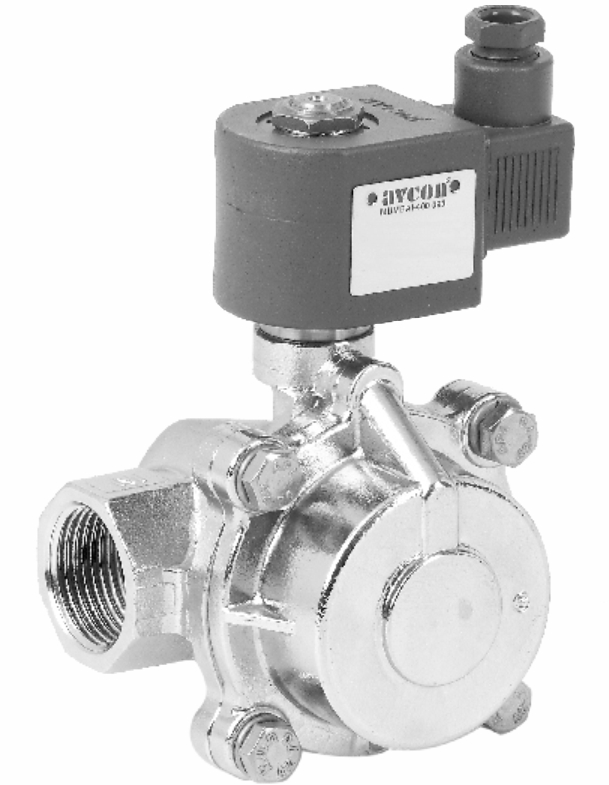

2/2- Way Pilot Operated , Piston Type, High Pressure Solenoid Valves.

9100H-Normally Closed, Energised To Open, 9120H-Normally Open, Energised To Close.

Size

10mm(3/8") to 75mm(3")

End Connection

Standard-G-ISO-228 (BSP-F), Optional -NPT

Body Material

Standard – SS ASTM A351 Gr.CF8. Optional – SS ASTM A351 Gr.CF8M.

Body Test Pressure

40 Bar. (Refer to table below).

Construction Body

Upto 20mm(3/4") Brass forged IS 6912 and above inSS ASTM A351 Gr. CF8. Optional – SS ASTM A351Gr. CF8M

Differential Pressure

2 to 24 bar

Coil voltage

Standard -230-volts, 50Hz A.C. Optional – 24,110, 240 V DC & AC 50Hz or 60Hz.

Coil Rating

Continuously rated.

Fluids

Air, water, light hydraulic oil, mild corrosive medium, etc

Application

Chemical, textile, petrochemical, water treatment, ash handling system, combustion equipment, etc. Not suitable for Steam duty application.

Piston

SS AISI 304 (Bar Stock)

Seat

Standard-PTFE,Optional-Viton

Temperature of Fluid

-5° C to 120° C

Coil Insulation & Temperature

Ambient upto 42°C. Class ‘H’ insulted upto 155°C

Enclosure

Standard-General purpose SQ. moulded coil upto IP-20, Optional Weatherproof SQ. moulded coil upto IP-67, Flameproof coil upto FLP IIC.

Optional Feature

Manual override,mounting bracket.

Note

USE OF FILTER IN THE INLET SIDE IS HIGHLY RECOMMENDED.

Technical Data

9100H-9120H.pdf

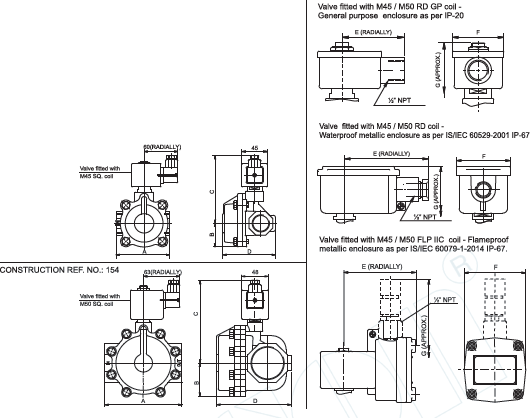

Diagrams
