| Size | 1/4" (6 mm) & 1" (25 mm) |
|---|---|
| End Connection | Std.-G-ISO-228 (BSP-F), Optional-NPT. |
| Body Material | Investment casted CF8 / CF8M |
| Differential Pressure | From 0.7 to 9 bar (9440E06-25) & from 2 to 19 Bar (9440E07-26) |
| Coil voltage (AC) | 230, 110, 48, 24V – 50/60 Hz |
| Coil voltage (DC) | 24, 110, 240 V |
| Fluids | Air, Gas , light oil |
| Application | For operating double acting cylinders, forging and moulding processes, machine tools, power generation, ash handling plant, LPG bottling equipment and others. |
| Seat | Standard – Nitrile (Buna ‘N’) Optional – Viton |
| Max.Wkg.Temp | ' -5°C to 80°C |
| Coil Insulation & Temperature | Class ‘H’ insulated upto 155°C. |
| Enclosure | Standard-General purpose IP-20, Optional-Weatherproof- RD-WP-67, Flameproof-RD-FLP-IIC + WP67. |
| Mounting | In horizontal pipeline, keeping solenoid upright and vertical |
| Sales Point | Heavy duty, high flow, reliable, semi-poppet valve for multi-million processes, machine tools, power generation , ash handling plant, LPG bottling equipment and others. |
| Note | 1) Use of filter in the inlet size is highly recommended., 2) Not suitable for back pressure from outlet side., 3) Available with special weatherproof and flameproof coils. |

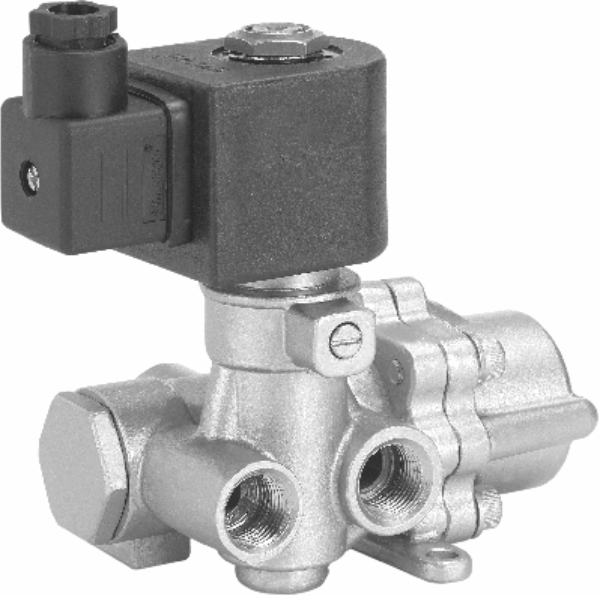

9440E
ABOUT PRODUCT
2 POSITION SINGLE SOLENOID VALVES, 4 WAY / 4 PORT (COMMON EXHAUST) / 2 POSITION VALVES.
Technical Data
9440E_Technical-Data.pdf

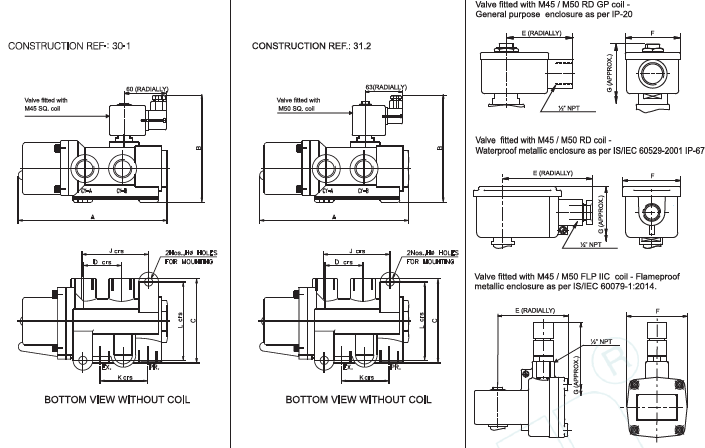

Diagrams
